#454「砌Pedalboard嘅樂趣」“Fun of building a pedalboard”
結他維修日誌 #454 「砌Pedalboard嘅樂趣」
.
近排因為個人興趣，砌咗一塊唔貴嘅木結他細Pedalboard。
將所有線材整理好，插好哂所有連接。當通電插amp，成功有聲一刻，非常滿足呢～
另外，我將一條短導線焊咗落一個木結他Output Jack。Jack頭一邊連接去Fishman「amp output」，Output Jack一邊安裝到Pedalboard預先鑽定嘅窿。咁做要連接Amp時候，就唔使花心思諗點將結他線插入俾Hotone擋住嘅Fishman喇！
Pedal次序：
Pickup > Fishman Platinum Pro EQ @fishmanmusic > (fx send) > Hotone Soul Press @hotoneaudioinst > Boss DD-3 Keeley mod @bossinfoglobal @keeleyelectronics > Mooer R7 @mooeraudio > (fx return) > To Amp / XLR out
連接以及零件：
-Mogami 2319 @mogamicable
-Square Plug SP500
-Switchcraft 6.35mm Output Jack
-Rean NYS-RP2RCF
-Pedaltrain Nano @pedaltrain
-Vitoos DD5-SV2
.
ø結他維修請信息查詢ø
————————————————————————
Guitar Repair Diary #454 "Fun of building a pedalboard"
.
Recently, I built a budget small acoustic pedalboard due to personal interest.
I carefully organised all the cables and made sure everything was connected properly. The moment I plugged in the amp and heard it played successfully, I felt extremely satisfied.

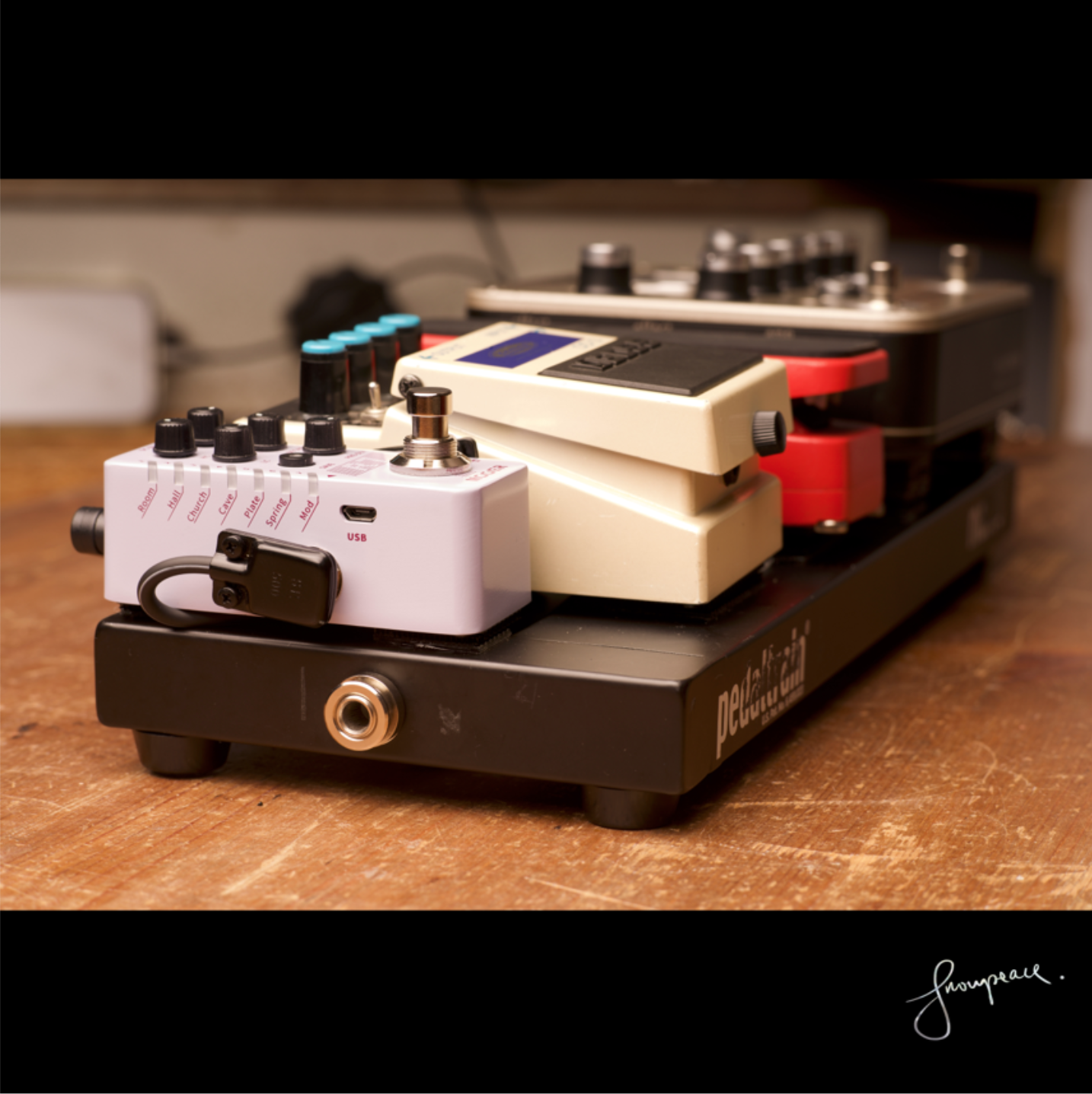

Additionally, I soldered a short cable with 6.35mm jack to an acoustic guitar output jack. The jack end is connected to the "amp output" of the Fishman, while the output jack is securely installed in a pre-drilled hole on the pedalboard. This way, when connecting to the amp, I no longer need to worry about how to insert the guitar cable into the Fishman, which is obstructed by the Hotone pedal.

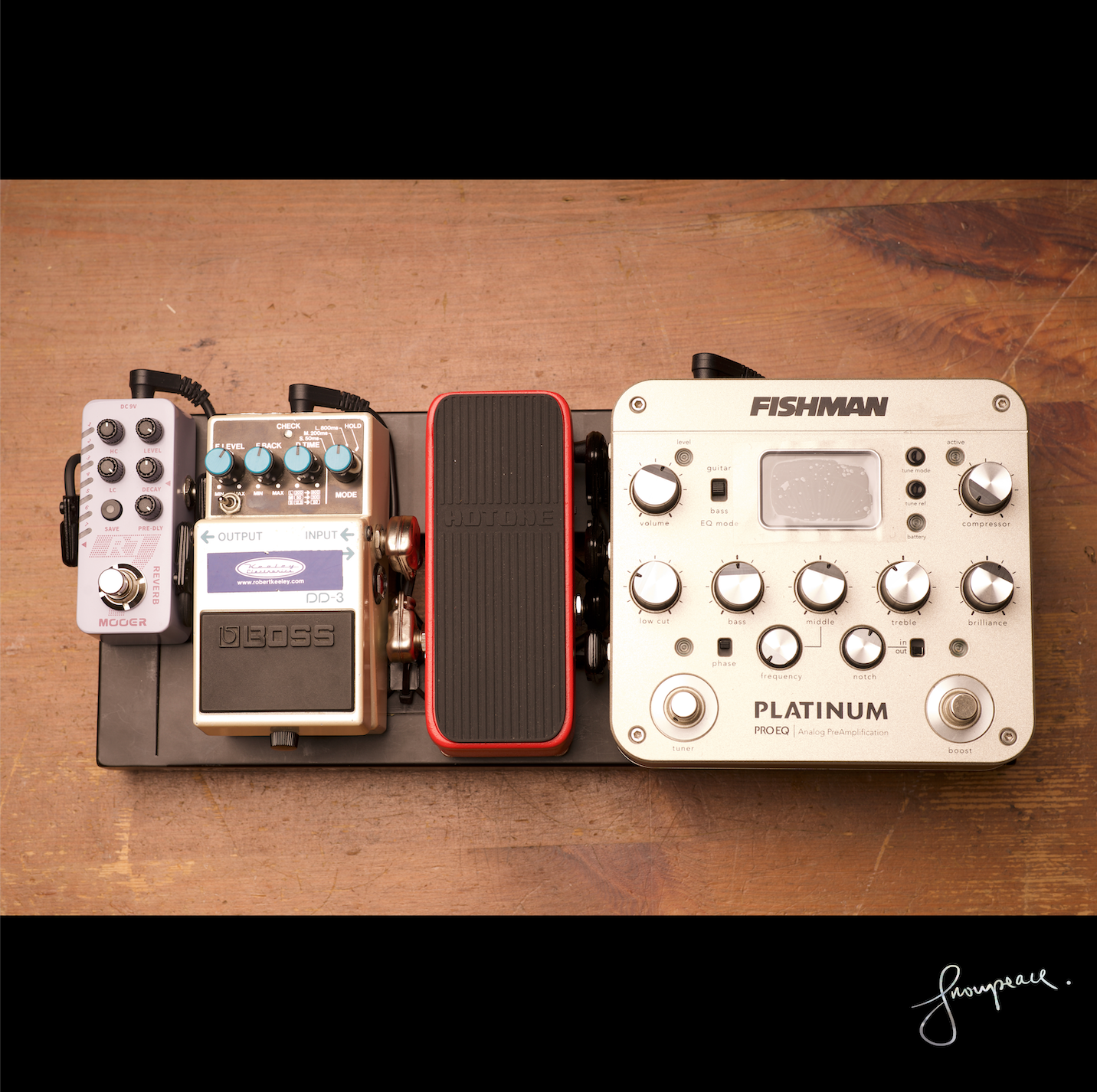

Signal Chain:
Pickup > Fishman Platinum Pro EQ @fishmanmusic > (fx send) > Hotone Soul Press @hotoneaudioinst > Boss DD-3 Keeley mod @bossinfoglobal @keeleyelectronics > Mooer R7 @mooeraudio > (fx return) > To Amp / XLR out
Connections and Components:
-Mogami 2319 @mogamicable
-Square Plug SP500
-Switchcraft 6.35mm Output Jack
-Rean NYS-RP2RCF
-Pedaltrain Nano @pedaltrain
-Vitoos DD5-SV2
.
